ASOM-640Pro surgical microscope is a neurosurgical microscope with a charged magnetic lock and fluorescence system
Product introduction
This microscope is mainly used for neurosurgery and spine. Neurosurgeons rely on surgical microscopes to visualize the fine anatomical details of the surgical area and brain structure in order to perform the surgical process with high accuracy. It is mainly applied to Brain aneurysm repair, Tumor resections，AVM treatment，Cerebral artery bypass surgery，Epilepsy surgery，Spine surgery.
The locking system is controlled by magnetic. FL800 & Fl560 can help
This Neurosurgery microscope is equipped with magnetic locking system, 6 sets can control arm and head moving.Optional fluorescence FL800&FL560. 200-630mm large working distance objective, 4K CCD image system you can enjoy better visualization effect through the high-definition integrated image system, support the display to view and playback pictures, and can share your professional knowledge with patients at any time. Autofocus functions can help you get the right focus working distance quickly. Two xenon light sources can provide sufficient brightness and safe backup.
Features
Magnetic locking system: The magnetic locking system is controlled by handle, lock and release by one press.
Fluorescence for blood FL800 and tumor tissue FL560.
Two light source: Two xenon lamps, high brightness, safe backup for surgery.
4K image system: Handle control, support record pictures and videos.
Autofocus function: Autofocus by one button, easy to reach the best focus quickly.
Optical lens: APO grade achromatic optical design, multilayer coating process
Electrical components: High reliability components made in Japan
Optical quality: Follow the company's ophthalmic grade optical design for 20 years , with high resolution of over 100 lp/mm and large depth of field
Stepless magnifications: Motorized 1.8-21x , which can meet the use habits of different doctors
Large zoom: Motorized 200 mm-630 mm Can cover a large range of variable focal length
Optional wired pedal handle: More options, doctor's assistant can take photos and videos remotely
More details
Electromagnetic lock
Electromagnetic locking system controlled by handle, easy to move and stop at any position, lock and release only press on button, excellent balance system will provide you easy and fluent experience.
2 Xenon light source
Two xenon lamps can provide high brightness, and the brightness can be adjusted continuously. The main lamp and the standby lamp can be switched quickly.
Motorized magnifications
Electric continuous zoom, can be stopped at any appropriate magnification.
VarioFocus objective lens
The large zoom objective supports a wide range of working distance, and the focus is adjusted electrically within the range of working distance.
Integrated 4K CCD recorder
Integrated 4K CCD recorder system support you to show them they are in good hands. Ultra-high resolution images can be easily transferred and archived in the patients’ files for recall at any time.
Autofocus function
Autofocus function can be realized by one button press on the handle controller.

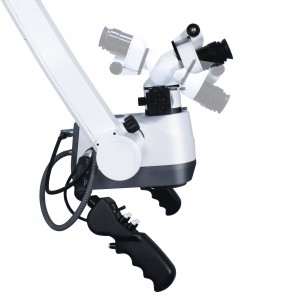

0-200 Binocular tube
It conforms to the principle of ergonomics, which can ensure that clinicians obtain clinical sitting posture that conforms to ergonomics, and can effectively reduce and prevent muscle strain of waist, neck and shoulder.

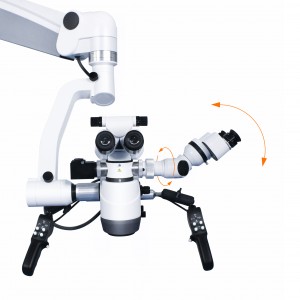

360 degree assistant tube
360 degree assistant tube can rotating for different positions, 90 degree with main surgeons or face to face position.

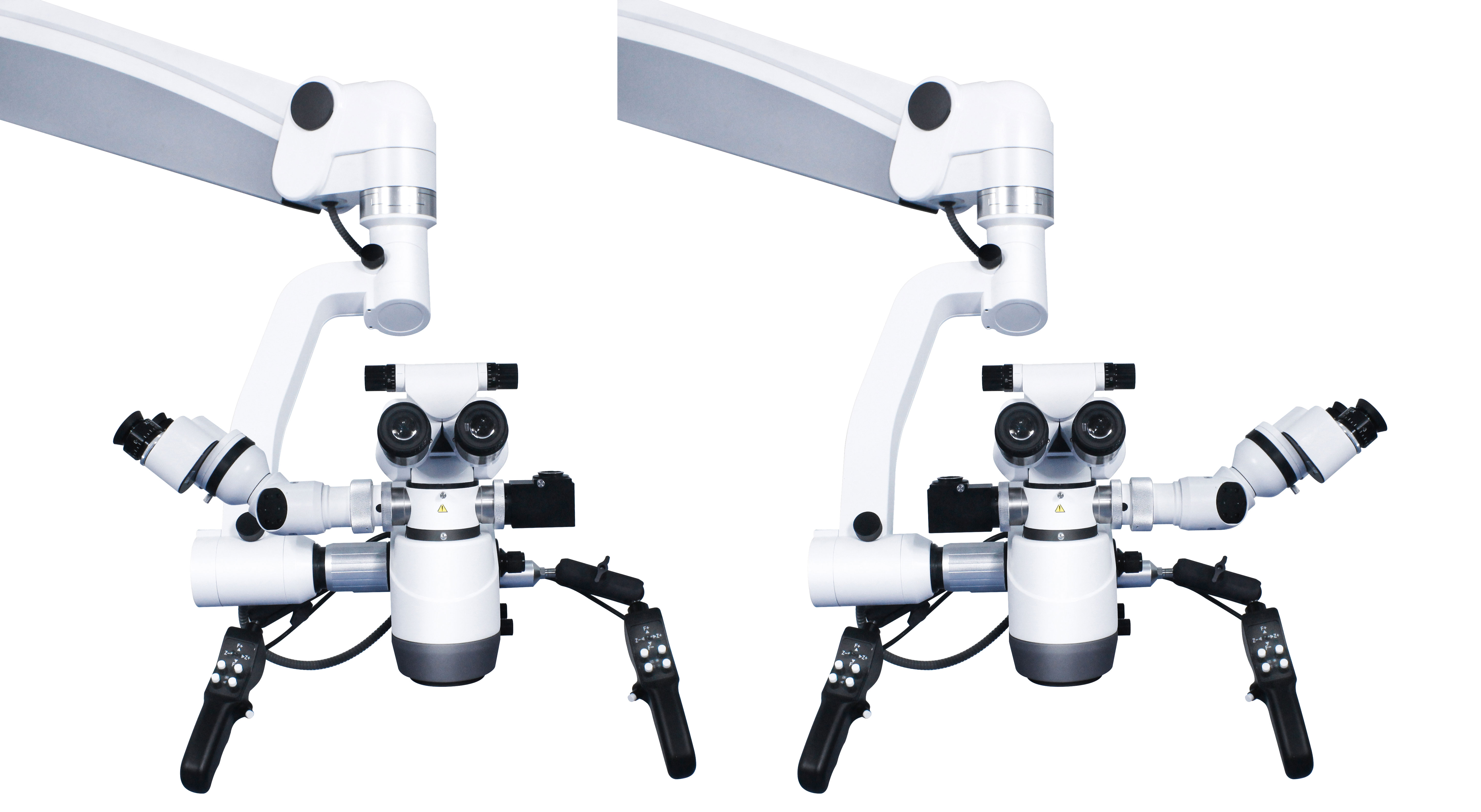

Coaxial assistant's binocular tube position can be switched
Doctors can choose to install Coaxial Assistant's Binocular Tube on the left or right side according to the actual operating position, which is more in line with the doctor's usage needs.
Filter
Built in yellow and green color filter
Yellow light spot: It can prevent the resin material from curing too quickly when exposed.
Green light spot: see the tiny nerve blood under the operating blood environment
Packing details
Wooden box：1260*1080*980 250KG
Specifications
| Product model | ASOM-640 |
| Application | Neurosurgery,ENT,Spine |
| Surgical microscope | |
| Magnification | Motorized zoom system, 1:6 zoom ratio |
| Working distance | 200-630 mm, motorized multifocal lens, continuously adjustable |
| Binocular tube | 0°~200°inclinable binocular tube |
| Eyepiece | 12.5x/10x |
| pupil distance | 48mm~78mm |
| diopter adjustment | +7D~-7D or +5D~-8D |
| Feild of veiw | F13.2~F180mm |
| Brake system | 6 sets electromagnetic brakes |
| Multi-functional programmable handles | Motorized zoom +/-, motorized focus +/-, lock/unlock 3 magnetic brakes, lock/unlock 6 magnetic brakes, take vedio, take photo, browse pictures, autofocus, brightness adjust +/-, X-Y moving |
| Touch screen | 7-inch programmable touch-screen with control of the microscope working specifications, indicator for main/backup ilumination, user information setting and store. |
| Assistant tube | 360° Rotating assistant tube |
| Maximum Resolution | 120 line pairs |
| lllumination | |
| System | Coaxial ilumination |
| Light source | 300W main source and 300W emergency light source |
| Lamps switch | Controlled by Touch screen |
| Light intensity adjustment | 30% auto-increased intensity at max magnification. Continuous brightness adjustment 0-150000lux |
| Safety function through working distance dependent limitation of the brightness | |
| Built- in automatic synchronization svstem for the diameter of the liaht field with the maanification level | |
| Field of illumination | >F90mm |
| Arm & Base | |
| Mount | Floor stand |
| Maximum arm extension | 1980mm |
| Height from objective to floor | 690mm<H<1452mm |
| Cantilever height adjustment range | 1400mm<H<2240mm |
| Minimum height of bracket | 1850mm |
| Cross arm rotation angle | 330° |
| Cantilever rotation angle | 330' |
| Base size | 742*826mm |
| Brake system | Four-wheel brake |
| Integrated Video system | |
| Sensor | Integrated 4K 1/1.8inch CMOS camera atomatic store in USB disk |
| Frame rate | 60fps |
| Effective pixels | 3840(H)x2160(V) |
| Output mode | HDM、DV、SDILVDS、RJ45、USB |
| Accessories | |
| Fluorescence module | 800nm infrared vascular fluorescence module |
| Multifunctional programmable footswitch | Motorized zoom +/-, motorized focus +/-, take vedio, take photo, browse pictures, autofocus, brightness adjust +/- |
| X-Y Translator | 80*80 mm |
| Video Adapter | SONY/CANON Camera |
| Others | |
| Motorized focus with optional camera-assisted adiustment | |
| Compatible with surgical laser use. | |
| Integrated software for quality control and traceability. | |
| Manual balancina of all axes. | |
| Integrated electronic damping system for maximum image stability. | |
| Safety mechanism to lock focusing when using a laser micromanipulator to ensure alignment. | |
Q&A
Is it a factory or a trading company?
We are a professional manufacturer of surgical microscope, established in the 1990s.
Why choose CORDER?
The best configuration and the best optical quality can be purchased at a reasonable price.
Can we apply to be an agent?
We are seeking long-term partners in the global market.
Can OEM&ODM be supported?
Customization can be supported, such as LOGO, color, configuration, etc.
What certificates do you have?
ISO, CE and a number of patented technologies.
How many years is the warranty?
Dental microscope has a 3-year warranty and lifelong after-sales service.
Packing method?
Carton packaging, can be palletized.
Type of shipping?
Support air, sea, rail, express and other modes.
Do you have installation instructions?
We provide installation video and instructions.
What is HS code?
Can we check the factory? Welcome customers to inspect the factory at any time
Can we provide product training? Online training can be provided, or engineers can be sent to the factory for training.
