Panoramic analysis of the technological evolution and multidisciplinary application of surgical microscopes

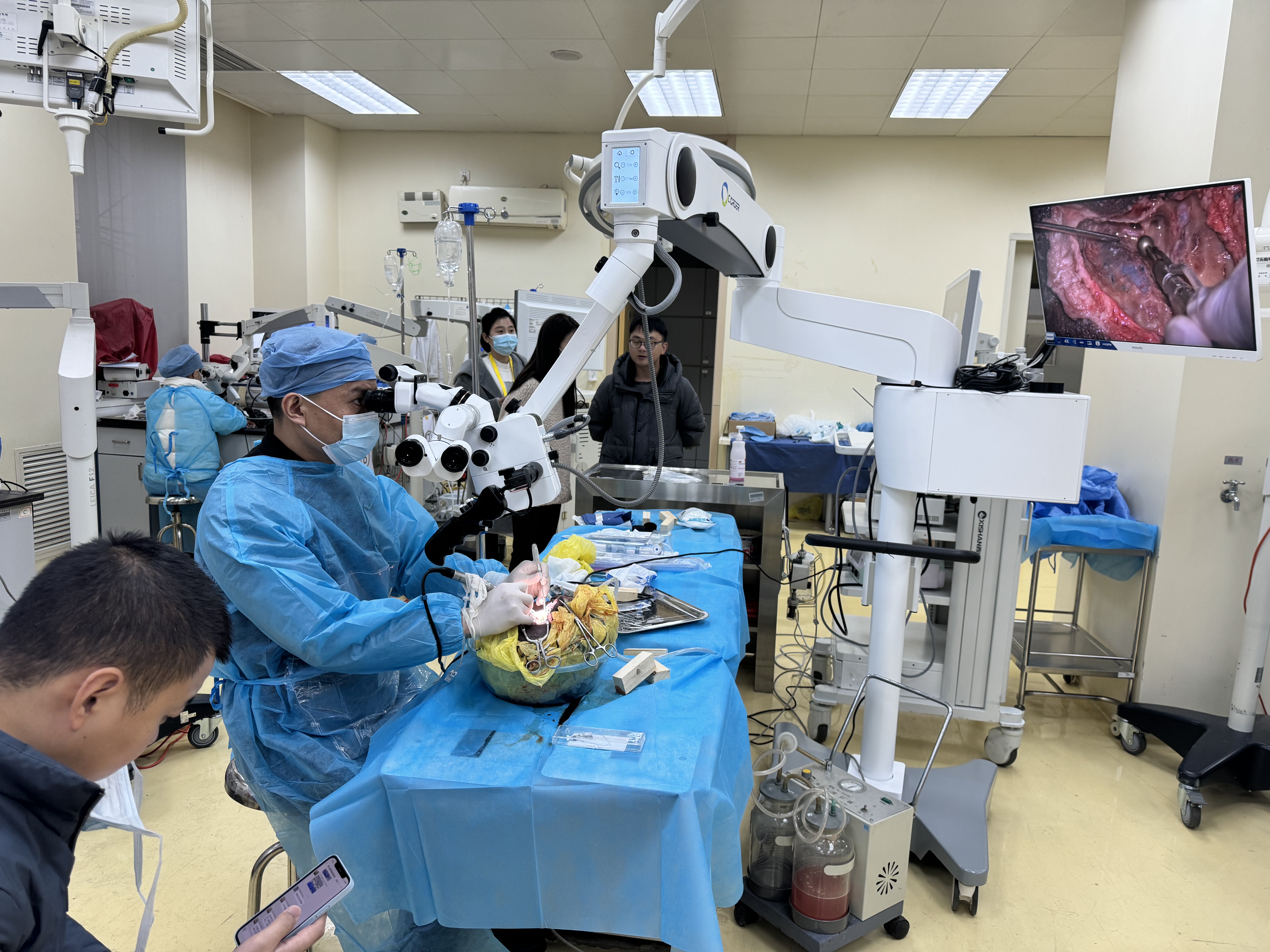

Surgical microscope is the core tool for achieving precise operations in modern medicine. As a medical device that integrates high-resolution optical systems, precision mechanical structures, and intelligent control modules, its core principles include optical magnification (usually 4 × -40 × adjustable), stereo field of view provided by binocular operating microscope, coaxial cold light source illumination (reducing tissue thermal damage), and intelligent robotic arm system (supporting 360 ° positioning). These features enable it to break through the physiological limits of the human eye, achieve a precision of 0.1 millimeters, and significantly reduce the risk of neurovascular injury.



Ⅰ、 Technical principles and core functions

1. Optical and imaging systems:

- The binocular system provides synchronized stereoscopic field of view for the surgeon and assistant through a prism, with a field of view diameter of 5-30 millimeters, and can adapt to different pupil distances and refractive powers. The types of eyepieces include wide field of view and prothrombin type, the latter of which can eliminate aberrations and ensure the clarity of edge imaging.

- The lighting system adopts fiber optic guidance, with a color temperature of 4500-6000K and adjustable brightness (10000-150000 Lux). Combined with red light reflection suppression technology, it reduces the risk of retinal light damage. Xenon or halogen lamp source combined with cold light design to avoid tissue thermal damage.

- The spectroscope and digital expansion module (such as 4K/8K camera system) support real-time image transmission and storage, making it convenient for teaching and consultation.

2. Mechanical structure and safety design:

- Operating microscope stands are divided into floor standing and table clamp operating microscopes. The former is suitable for large operating rooms, while the latter is suitable for consultation rooms with limited space (such as dental clinics).

- The six degree of freedom electric cantilever has automatic balancing and collision protection functions, and stops moving immediately when encountering resistance, ensuring intraoperative safety.



Ⅱ、 Specialized application scenarios and technology adaptation

1. Ophthalmology and cataract surgery:

The ophthalmology operating microscope is representative in the field of ophthalmic operating microscope. Its core requirements include:

- Ultra high resolution (increased by 25%) and large depth of field, reducing the number of intraoperative focusing;

- Low light intensity design (such as ophthalmic cataract operation microscope) to enhance patient comfort;

- 3D navigation and intraoperative OCT function enable precise adjustment of the crystal axis within 1 °.

2. Otolaryngology and Dentistry:

- The ENT operation microscope needs to be adapted for deep narrow cavity operations (such as cochlear implantation), equipped with a long focal length objective lens (250-400mm) and a fluorescence module (such as ICG angiography).

- The dental operating microscope adopts a parallel light path design, with an adjustable working distance of 200-500mm. It is equipped with a fine adjustment objective lens and a tilting binocular lens to meet the ergonomic needs of fine operations such as root canal treatment.

3. Neurosurgery and Spinal Surgery:

- The neurosurgical operating microscope requires autofocus, robotic joint locking, and fluorescence imaging technology (to resolve blood vessels at the 0.1 millimeter level).

- The spinal surgery operational microscope requires a high depth of field mode (1-15mm) to adapt to deep surgical fields, combined with a neuro navigation system to achieve precise decompression.

4. Plastic and cardiac surgery:

- The plastic surgery operating microscope requires an extended depth of field and low thermal light source to protect flap vitality and support real-time assessment of blood flow through FL800 intraoperative angiography.

- The cardiovascular operating microscope focuses on the accuracy of microvascular anastomosis and requires the flexibility and electromagnetic interference resistance of the robotic arm.



Ⅲ、 Technological development trends

1. Intraoperative navigation and robot assistance:

- Augmented reality (AR) technology can overlay preoperative CT/MRI images on the surgical field to mark vascular and neural pathways in real-time.

- Robot remote control systems (such as joystick controlled microscopes) improve operational stability and reduce operator fatigue.

2. Fusion of super-resolution and AI:

- Two photon microscopy technology achieves cell level imaging, combined with AI algorithms to automatically identify tissue structures (such as tumor boundaries or nerve bundles), and assist in precise resection.

3. Multimodal image integration:

-Fluorescence contrast imaging (ICG/5-ALA) combined with intraoperative OCT supports a real-time decision-making mode of "watching while cutting".



Ⅳ、 Configuration selection and cost considerations

1. Price factor:

- The basic dental operation microscope (such as a three-level zoom optical system) costs about one million yuan;

- The high-end neural operation microscope (including 4K camera and fluorescent navigation) can cost up to 4.8 million yuan.

2. operating microscope accessory：

-The key accessories include a sterilization handle (resistant to high temperature and high pressure), a focusing eyepiece, a beam splitter (supporting auxiliary/teaching mirrors), and a dedicated sterile cover.



Ⅴ、 Summary

Surgical microscopes have evolved from a single magnifying tool to a multidisciplinary precision surgical platform. In the future, with the deep integration of AR navigation, AI recognition, and robotics technology, its core value will focus on "human-machine collaboration" - while improving surgical safety and efficiency, doctors still need solid anatomical knowledge and operational skills as a foundation. Specialized design (such as the difference between spinal operating microscope and ophthalmic operating microscope) and intelligent expansion will continue to push the boundaries of precision surgery towards the sub millimeter era.
